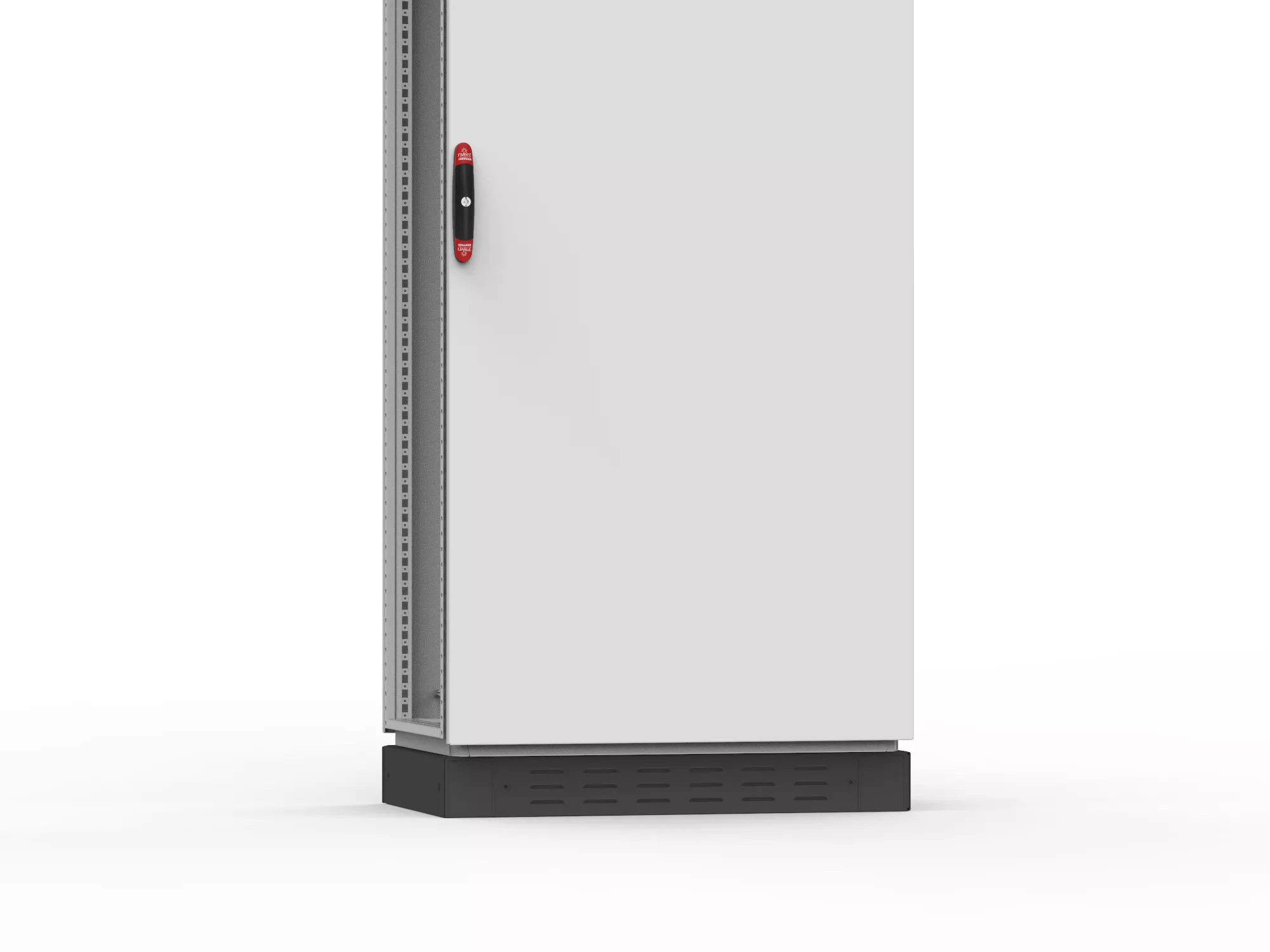

Ventilated Front/Rear Plinths, PV allows for cabling without any restrictions in accordance with VDE0113 standards. This Ventilated Front/Rear Plinths, PV, PV1100 item measures 100x998x62mm with a material of Mild Steel, finish Zinc Plated.
Description: Front and rear plinth sections with ventilated panels. Recommended to be used in combination with the ventilated bottom plate CVB. For cabling without any restrictions and in accordance with the VDE 0113 standard. The plinth consists of four
Material: Corner pieces in 2 mm and panels in 1.5 mm mild steel.
Finish: RAL 7022 structured powder coating.
Pack quantity: 1 set of 4 corner pieces including covers. Front and rear panel with mounting accessories for side panels PS or transversal profiles PCP.
Mounting requirements: Add the side panels PS for a complete plinth. When combining enclosures it is recommended to add transversal panels PCP for cable duct support and extra rigidity. Use ventilated bottom plates CVB to get better enclosure ventilation.
Mounting requirements: add the side panels PS for a complete plinth; when combining enclosures it is recommended to add transversal panels PCP for cable duct support and extra rigidity; use ventilated bottom plates CVB to get better enclosure ventilation
Specifications
Brand Name
Hoffman
Type
IEC Enclosure Accessories
Height
3.94 in
Width
39.29 in
Depth
2.44 in
Material
Mild Steel
Color
RAL 7022 Umbra Gray
Finish
Powder Coated
Application
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
UPC
783510526757
