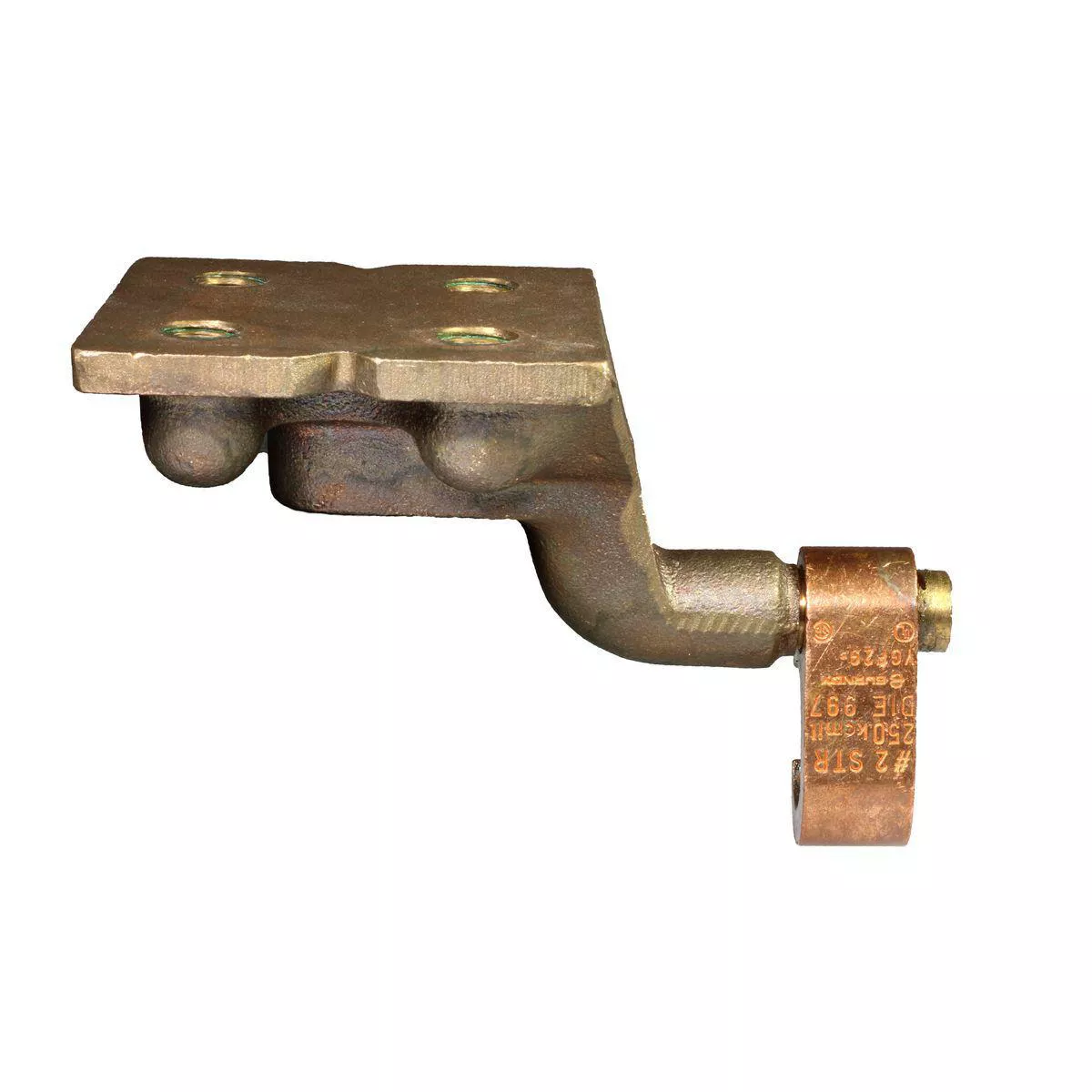

Compression Grounding Plate; Copper; 4-Hole; Accommodates: 2 AWG – 250 kcmil; 1/2″ Stud; 1-3/4″ Stud Hole Spacing
Compression Grounding Plate designed for the rigors of concrete construction
Made of high strength, high-conductivity cast copper alloy body
Plate comes with a tapped hole on the underside for ease of positioning prior to pouring concrete
UL467 Listed, Acceptable for direct burial in earth or concrete
Prefilled with oxide inhibiting compound and strip sealed
Specifications
Brand Name
Burndy
Sub Brand
Grounding and Bonding
Item Name
Ground Plate
Type
YGF
Plate Size
33.28 mm T x 82.58 mm W
Wire Size
2 AWG – 250 kcmil
Material
Copper
Finish
Unplated
Mounting Type
(4) 1-3/4 in Hole
Standards
RoHS Compliant
Application
Used to Position the Grounding Plate on a Threaded Rod Prior to Placement of the Concrete
UPC
781810220511
