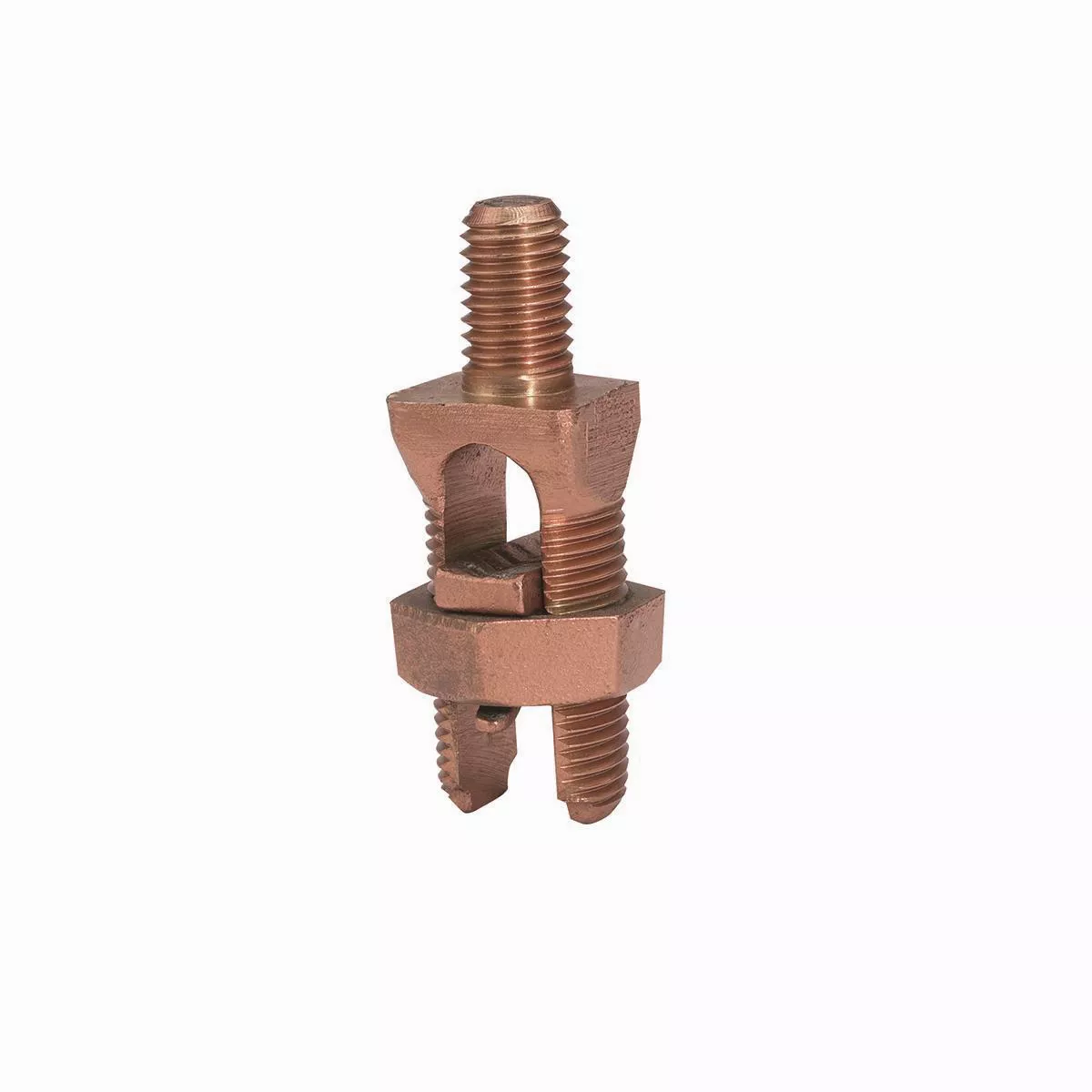

Mechanical Grounding Connector, Cable to Flat, 1-4/0 AWG, 5/8″ Stud, 1-3/4″ Height, B=3/4″
SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
Also used to tap 1 or 2 cables from bus bar
1-Wrench installation
Specifications
Brand Name
Burndy
Sub Brand
Servit Post™
Item Name
Grounding Connector
Type
Mechanical
Conductor Type
Commercial Stranded Copper, Commercial Solid Copper (Run)
Conductor Size
1-4/0 AWG Solid and Stranded
Material
Copper Alloy
Series/Model
KC
Finish
Untreated
Dimensions
2-3/4 in H
Mounting Type
5/8-11
Standards
UL Listed, CSA Certified, RoHS Compliant
Application
For Used to Ground One or Two Copper Cables to Steel Structures, Fence Posts, Transformers, Tap One or Two Cables from Bus Bar and Direct Burial
UPC
781810256251
Packages
