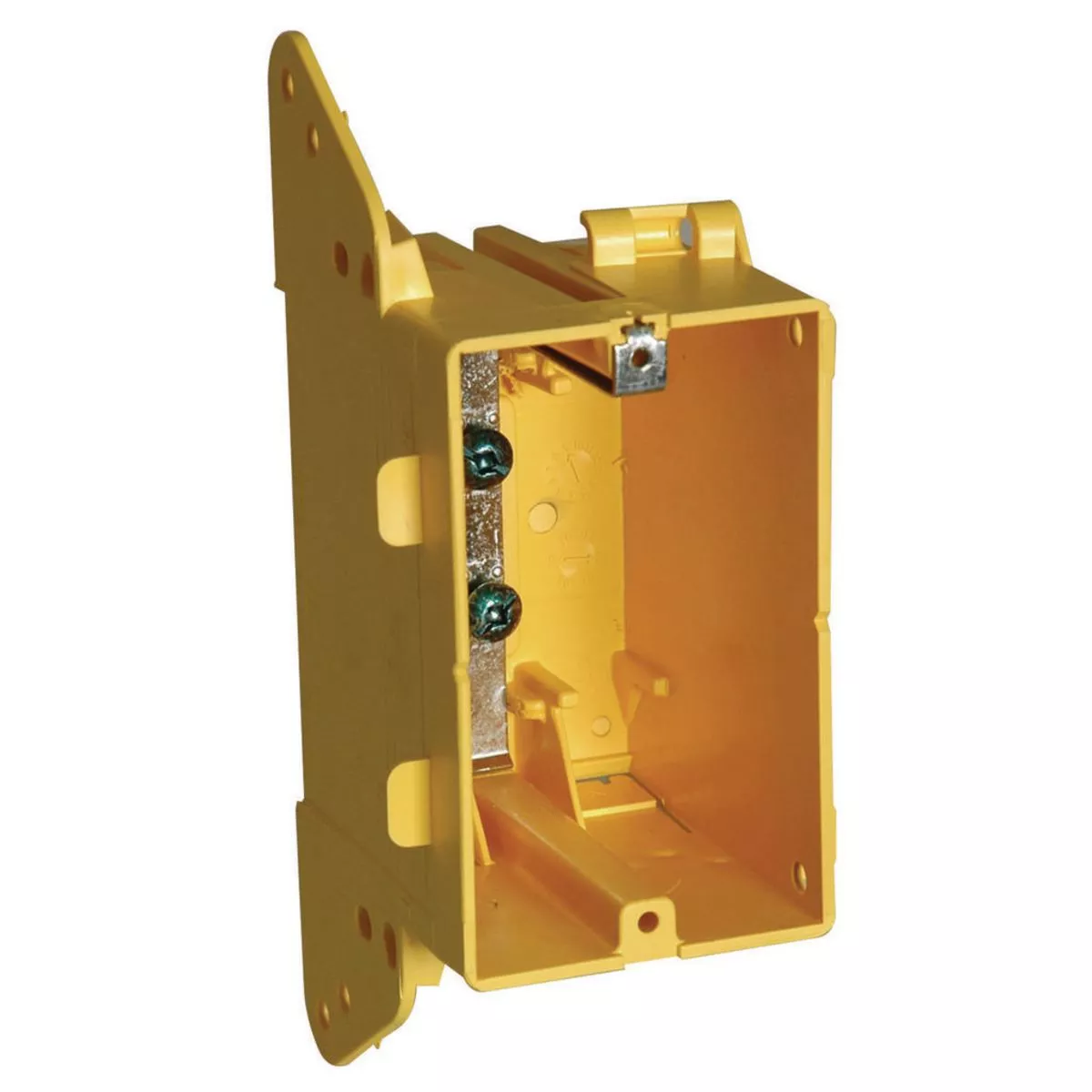

Box non metallic, 1 gang with flush bracket, 1/2 setback.
Preset tabs at 1/2” for fast positioning
Breakable tabs, perfect for double drywall installation
Engravings at 5/8”, 1”, 1-1/8” and 1-1/4’’ ensure box placement in accurate and consistent depths, while reducing the installation time
Superior cubic capacity – Additional volume makes terminationeasier and is excellent for deeper body devices
Oversized nailing / screw bracket for better reach to mount onstud or joint
High hammer impact resistant when nailing
Lightweight
Bright yellow color helps to locate wires in low light levels
N/A
Specifications
Brand Name
Hubbell
Sub Brand
Trade-Select™
Item Name
Device Box with Bracket
Type
4-Inlet, Rectangular
Width
69.85 mm
Cubic Capacity
18 in³
Number of Gangs
1
Material
High Strength Plastic Resin
Color
Yellow
Mounting Type
Flush, Screw
Includes
Nail Lugs
Standards
CSA Certified
Application
Accommodates Wiring Devices such as Switches and Receptacles
UPC
805035000038
