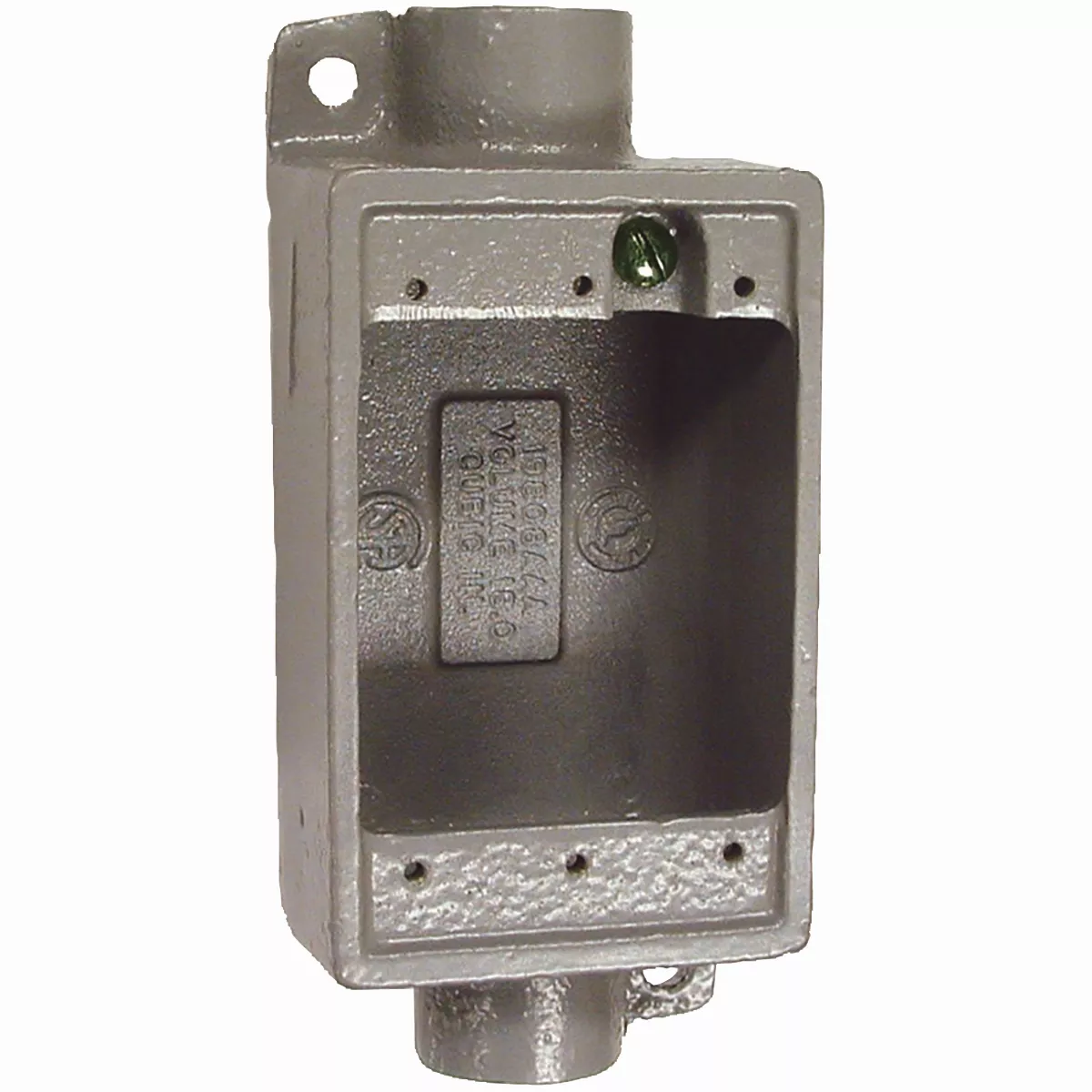

F series device boxes accommodate wiring devices and provides opening to splice, tap or pull conductors. It provides access to conductors for maintenance and future system changes. Suitable for use in wet locations when used with gasket covers. All devices are offered in our copper-free aluminum with electro-statically applied powder coating. Some devices are configured for our tri-coat protected iron.Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers .
Tapered threads (NPT with integral bushings)
Internal grounding screw
Mounting feetare provided as standard
Suitable for use in wet locations when used with gasket covers
Cast iron is suitable for concrete use
Specifications
Brand Name
Hubbell
Sub Brand
Killark
Item Name
Feed-Thru Deep Cast Device Box
Type
1-Outlet, Single, Rectangular
Length
6-3/8 in
Width
2-7/8 in
Depth
2-7/8 in
Cubic Capacity
28.5 in³
Material
Copper-Free Aluminum
Finish
Powder Epoxy Paint
Color
Gray
Mounting Type
Screw
NEMA Rating
NEMA 1
Cable Entry
0.75 in
For Use With
3/4 in Tube Diameter
Includes
(1) Spout, Nail Lugs, Screws
Standards
UL Listed, CSA Certified
Application
Accommodates Wiring Devices and Provides Opening to Splice, Tap, or Pull Conductors, Provide Access to Conductors for Maintenance and Future System Changes
UPC
783936150086
