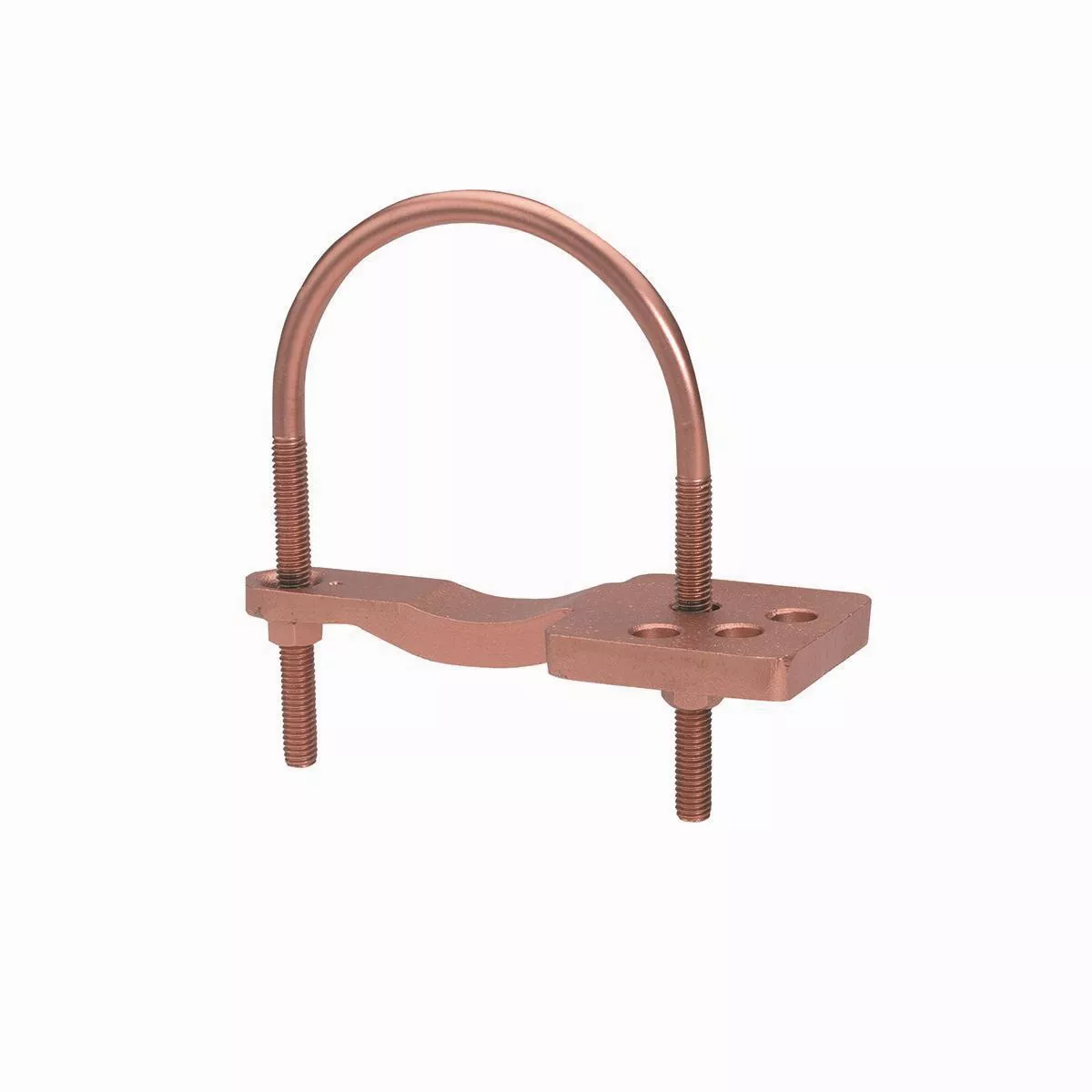

Mechanical Grounding Connector, For 2 Hole Lug to Pipe or Rod, 1-1/4″ – 2″ IPS, Pre-drilled pad for (2) 3/8” bolts on 1” centers. Silicon bronze hardware.
Large, smooth connector contact area between pipe and ground clamp to maximize contact area between connector and pipe
Pre-drilled pad for 2-3/8″ bolts on 1″ centers to allow for direct mounting of 2-hole compression terminals up to 750 kcmil to pipe
One-wrench installation
UL467 Listed for the US and Canadian Markets
Specifications
Brand Name
Burndy
Sub Brand
MECHANICAL CONNECTOR
Type
Pointed
Material
Copper Alloy
Standards
UL467
Application
For use with 0.50 inch FM8 conduit bodies. Seals and protects.
UPC
781810241110
