Extra-duty die-cast cover with Type 3R enclosure rating. Complies with NEC® Section 406.9(B)(1) for Extra Duty applications. Reinforced hinge – withstands 40 lbs stress test. Die-cast Aluminium construction for durability. Patented Flexi-Guard inserts for flexibility of installation.
Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
CEC Article 26-702 Compliant
UL Certified for Type 3R outdoor enclosures
Meets requirements for cold impact testing: -60° F (-51° C)

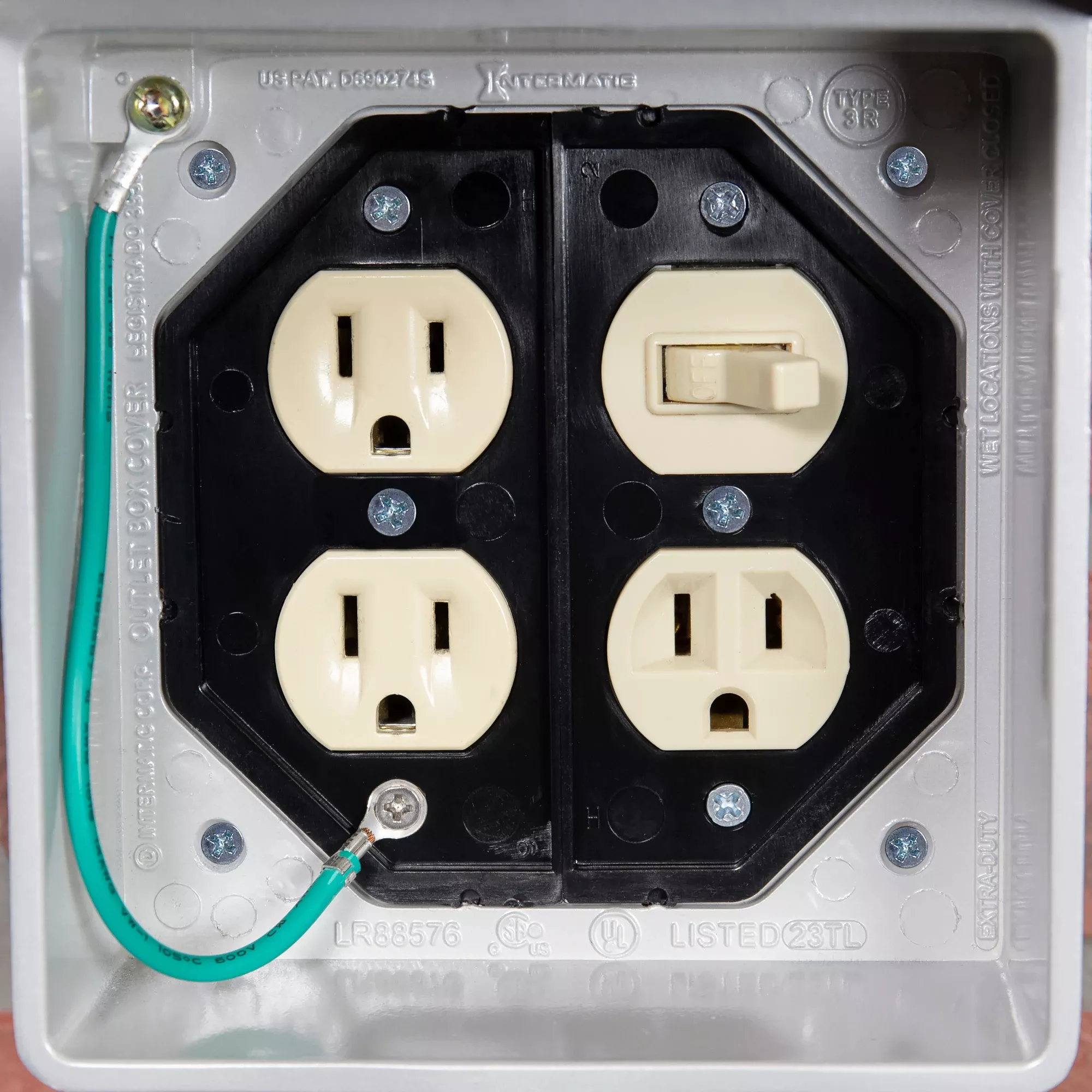

Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts
1/8″ (3 mm) thick, neoprene gasket with slits for mounting screws
Lockable hasp: All models accept up to 1/4″ (6 mm) dia shank
Impact rated: 12 lbf. impact test to ensure cover remains intact
Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
Warranty: 1-year limited
Specifications
Brand Name
Intermatic
Item Name
Weatherproof Cover
Type
Rectangular, Receptacle, Lockable
Width
146.05 mm
Depth
79.375 mm
Material
Heavy Duty Die-Cast Aluminum
Number of Outlets
1
Color
Gray
Insulation Type
Neoprene Gasket
Mounting Type
Horizontal, Horizontal
Enclosure Type
NEMA 3R
Includes
Hinged Lid
Standards
UL Listed, CSA Certified, NEMA 3R, 2014 NEC Article 406.9(B)(1), CEC Rule 26-702
Application
Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
UPC
078275130128
