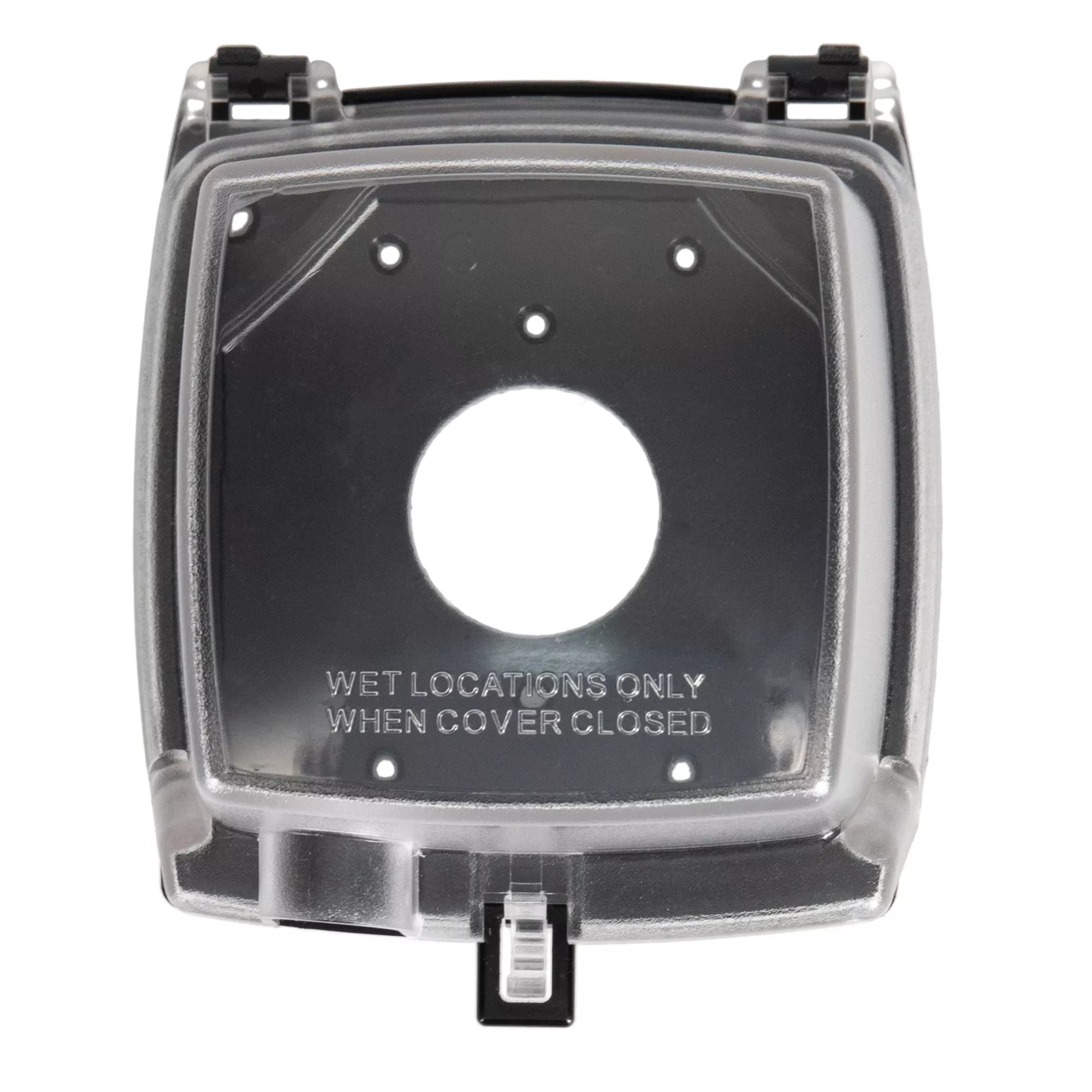

WP1000C Series plastic while-in-use cover is easy to install and shipped with a gasket, mounting screws, base and cover assembly and patented inserts for a variety of applications. Complies with 2008 NEC Article 406.8(B)(1). 3 patented inserts for GFCI, duplex, toggle or round receptacles. Two-gang models include 6 snap-together, rotating, inserts that create 70 combinations. Heavy-duty polycarbonate construction. Clear cover on most models. Pre-adhered gasket. Meets requirements for cold impact testing: -60°F (-51°C).
Complies with 2020 NEC Article 314.15 for damp and wet locations
UL Certified for Type 3R outdoor enclosures
Meets requirements for cold impact testing: -60° F (-51° C)
Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
1/8″ (3 mm) thick neoprene gasket with slits for mounting screws
WP102 GFCI & WP107 Round single-gang application inserts included.
Inserts can be rotated to fit vertical or horizontal applications.
Fits standard square 4” wall boxes with single-gang applications.
Max cord size: (2) 14 AWG or (1) 12 AWG, WP1050 (2) 14 AWG or (1) 10 AWG
Warranty: 1-year limited
Specifications
Brand Name
Intermatic
Item Name
Weatherproof Receptacle Cover with Hinged Lid
Type
Jumbo, Rectangular
Width
5 in
Depth
4-3/4 in
Material
Heavy Duty Polycarbonate
Number of Outlets
2
Color
Clear White
Finish
Untreated
Insulation Type
Neoprene Gasket
Mounting Type
Vertical, Screw
Enclosure Type
NEMA 3R
Includes
WP101, WP102 Inserts
Application
For Schools, Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
UPC
078275028135
Packages
