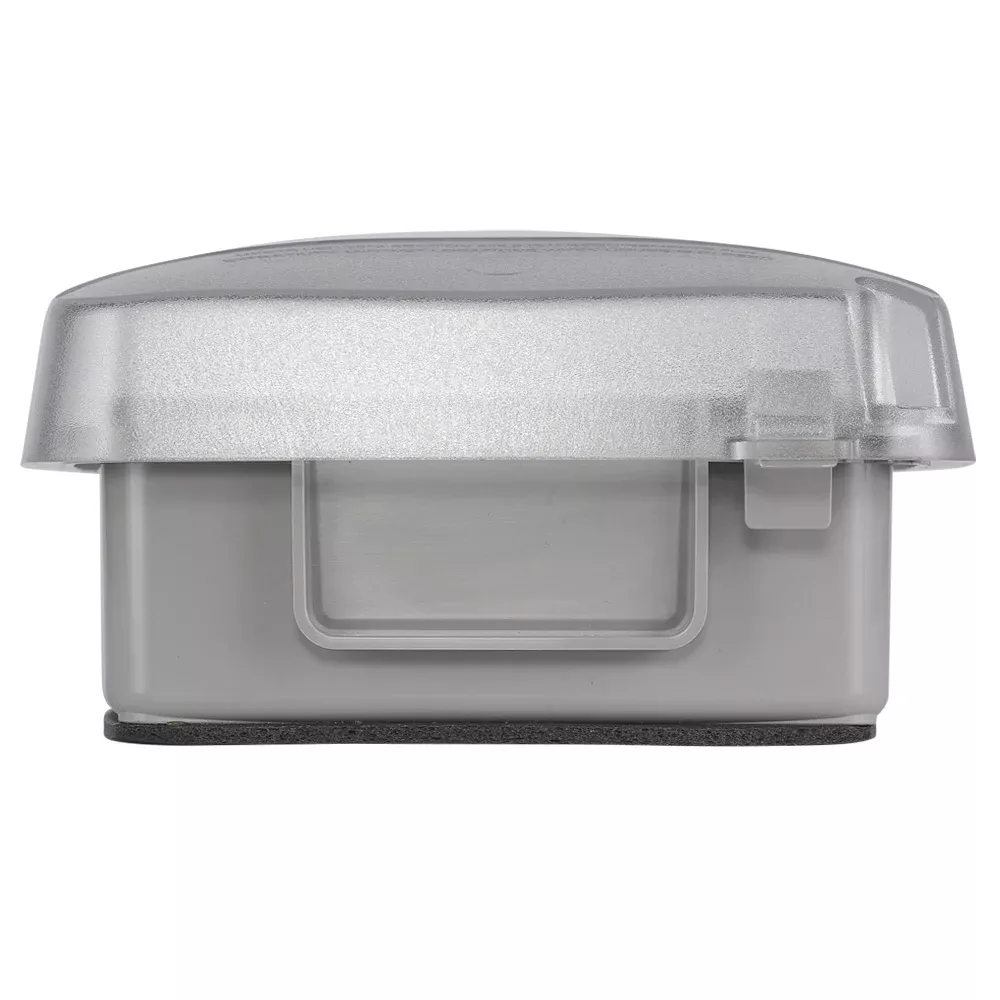

Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
CEC Article 26-702 Compliant
UL Certified for Type 3R outdoor enclosures
Meets requirements for cold impact testing: -60° F (-51° C)
Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
1/8″ (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
Lockable hasp: All models accept up to 1/4″ (6 mm) dia. shank
Impact rated: 12 lb. impact test to ensure cover remains intact
Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
Warranty: 1-year limited
Specifications
Brand Name
Intermatic
Item Name
Weatherproof Cover
Type
Rectangular, Receptacle
Diameter
6.0 mm
Length
6-1/2 in
Width
6-1/2 in
Depth
2-1/4 in
Material
Heavy Duty Polycarbonate
Number of Gangs
2
Number of Outlets
2
Color
Clear
Finish
Plastic
Insulation Type
Neoprene Gasket
Mounting Type
Vertical
For Use With
Commercial, home
Standards
UL Listed, CSA Certified, UL Certified for Type 3R, 2014 NEC Article 406.9(B)(1), CEC Rule 26-702
Application
Wet Location and Heavy Duty Application
UPC
078275145337
