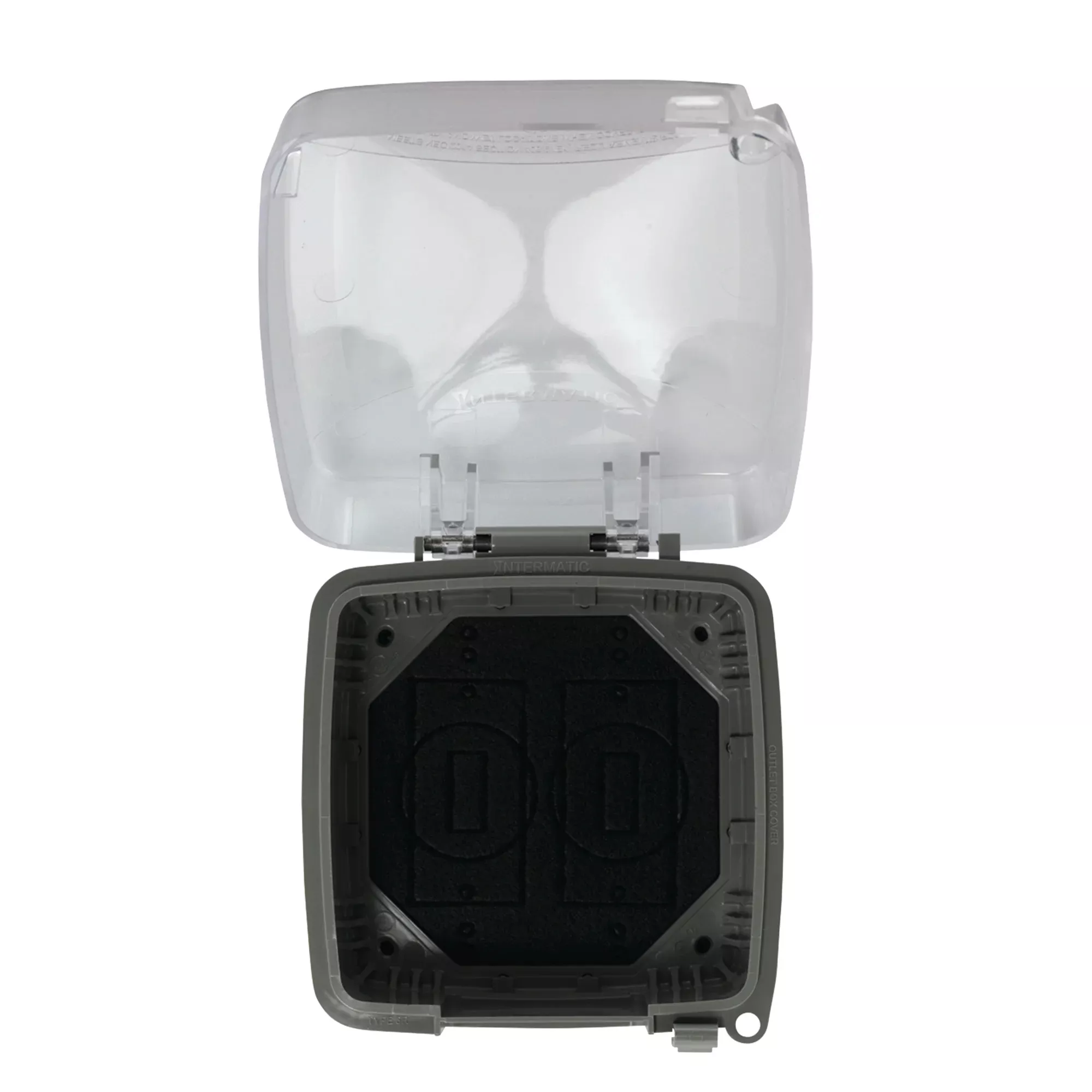

Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
CEC Article 26-702 Compliant
UL Certified for Type 3R outdoor enclosures
Meets requirements for cold impact testing: -60° F (-51° C)
Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
1/8″ (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
Lockable hasp: All models accept up to 1/4″ (6 mm) dia. shank
Impact rated: 12 lb. impact test to ensure cover remains intact
Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
Warranty: 1-year limited
Specifications
Brand Name
Intermatic
Item Name
Weatherproof Cover
Type
Rectangular, Receptacle
Length
6-1/2 in
Width
6-1/2 in
Depth
2-3/4 in
Material
Heavy Duty Polycarbonate
Number of Gangs
2
Number of Outlets
2
Color
Clear
Insulation Type
Neoprene Gasket
Mounting Type
Vertical
Standards
UL Listed, CSA Certified, UL Certified for Type 3R, 2014 NEC Article 406.9(B)(1), CEC Rule 26-702
Application
Wet Location and Heavy Duty Application
UPC
078275145351
