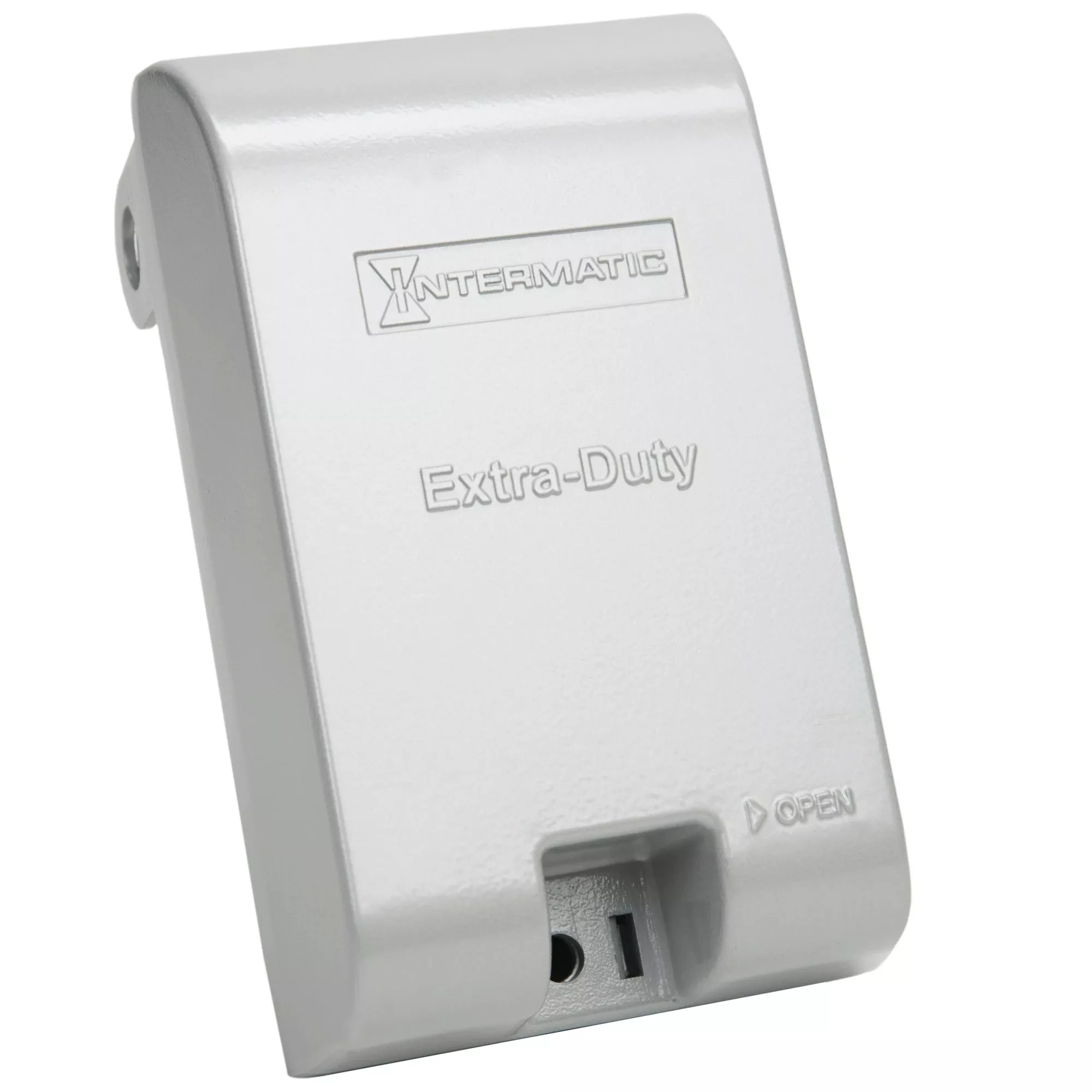

Extra-duty die-cast cover with Type 3R enclosure rating. Complies with NEC® Section 406.9(B)(1) for Extra Duty applications. Reinforced hinge – withstands 40 lbs stress test. Die-cast Aluminium construction for durability. Patented Flexi-Guard inserts for flexibility of installation.
Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
CEC Article 26-702 Compliant
UL Certified for Type 3R outdoor enclosures
Meets requirements for cold impact testing: -60° F (-51° C)
Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts
1/8″ (3 mm) thick, neoprene gasket with slits for mounting screws
Lockable hasp: All models accept up to 1/4″ (6 mm) dia shank
Impact rated: 12 lbf. impact test to ensure cover remains intact
Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
Warranty: 1-year limited
Specifications
Brand Name
Intermatic
Item Name
Weatherproof Receptacle Cover with Hinged Lid
Type
Rectangular
Length
161.79 mm
Width
98.425 mm
Depth
79.375 mm
Material
Heavy Duty Die-Cast Aluminum
Number of Gangs
1
Number of Outlets
1
Color
Gray
Finish
Plastic
Insulation Type
Neoprene Gasket
Mounting Type
Vertical
Enclosure Type
NEMA 3R
Temperature Rating
48.0 degrees C
For Use With
Commercial, home
Standards
2014 NEC Article 406.9(B)(1), UL Listed, CSA, CEC Rule 26-702
Application
Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
UPC
078275130135
