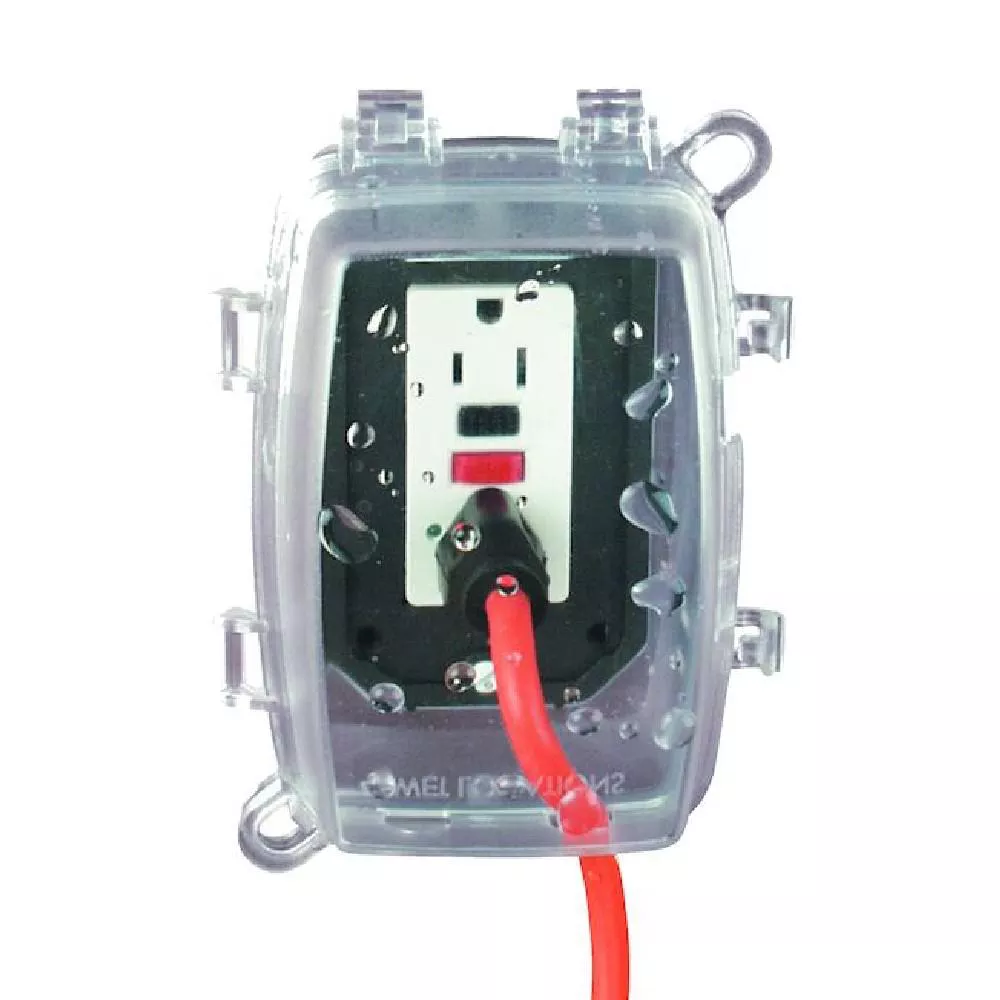

WP1100C Series plastic while-in-use cover is easy to install and shipped with gasket, mounting screws, base and cover assembly and patented inserts for a variety of applications. Complies with 2008 NEC Article 406.8(B)(1). 3 patented inserts for GFCI, duplex, toggle or round receptacles. Two-gang models include 6 snap-together, rotating, inserts that create 70 combinations. Single-gang covers mount vertically and horizontally. Heavy-duty polycarbonate construction. Pre-adhered gasket. Meets requirements for cold impact testing: -60°F (-51°C).
Complies with 2020 NEC Article 314.15 for damp and wet locations
UL Certified for Type 3R outdoor enclosures
Meets requirements for cold impact testing: -60° F (-51° C)
Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
1/8″ (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
Lockable hasp: All models accept up to 1/4″ (6 mm) dia shank, except WP3100C & WP3103C accept up to 1/8″ (3 mm) dia shank
Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
Max cord size: (2) 14 AWG or (1) 12 AWG
Mounts vertically or horizontally
Warranty: 1-year limited
Specifications
Brand Name
Intermatic
Item Name
Weatherproof Cover
Type
Rectangular, Receptacle, Lockable
Width
4 in
Depth
92.075 mm
Material
Heavy Duty Polycarbonate
Number of Outlets
1
Color
Clear White
Finish
Untreated
Insulation Type
Neoprene Gasket
Mounting Type
Vertical/Horizontal, Screw
Enclosure Type
NEMA 3R
Includes
Hinged Lid
Standards
UL Listed, CSA Certified, 2011 NEC Article 406.9 (B1), 2008 NEC Article 406.8
Application
Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools
UPC
078275072824
