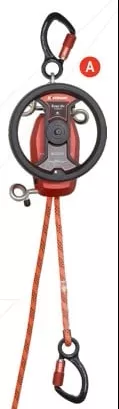

KStrong EVAC-R+ Descender, Rescue and Lifting Device AFX209070
The KStrong® EVAC-R+ is an automatic, controlled-descent device engineered for lifting or lowering an injured person. It features a redundant, two-flywheel brake system and can be operated manually or with a cordless drill via the 10 mm hex connector.
Features & Benefits
- Rescue from elevated platforms with minimal setup
- Hand-wheel for simultaneous lifting of rescuer and casualty
- Power-drill–assist option for raising up to full rope length
- Automatic, redundant brake system with two flywheel brakes
- Shuttle-system capability to alternate descent on both rope ends
Specifications
- Controlled descent speeds: 1 m/s at 187 lb (85 kg); 1.5 m/s at 374 lb (170 kg)
- Maximum simultaneous load: 628 lb (285 kg)
- Kernmantle rope compatibility: ø 9.6–11 mm (EN 1891-A, EN 12841-C) and ø 11 mm rope (EN 341, EN 1496, ANSI Z359.4)
- Standards: Meets or exceeds ANSI Z359.4-2013, EN 341:2011 1A, EN 1496:2017 B, EN 12841 Type C
Downloads
- Techsheet
- Manual
- Declaration of Conformity
