KStrong Megadavit Concrete Embed Column Mast Receiver (SS316) UFT555002

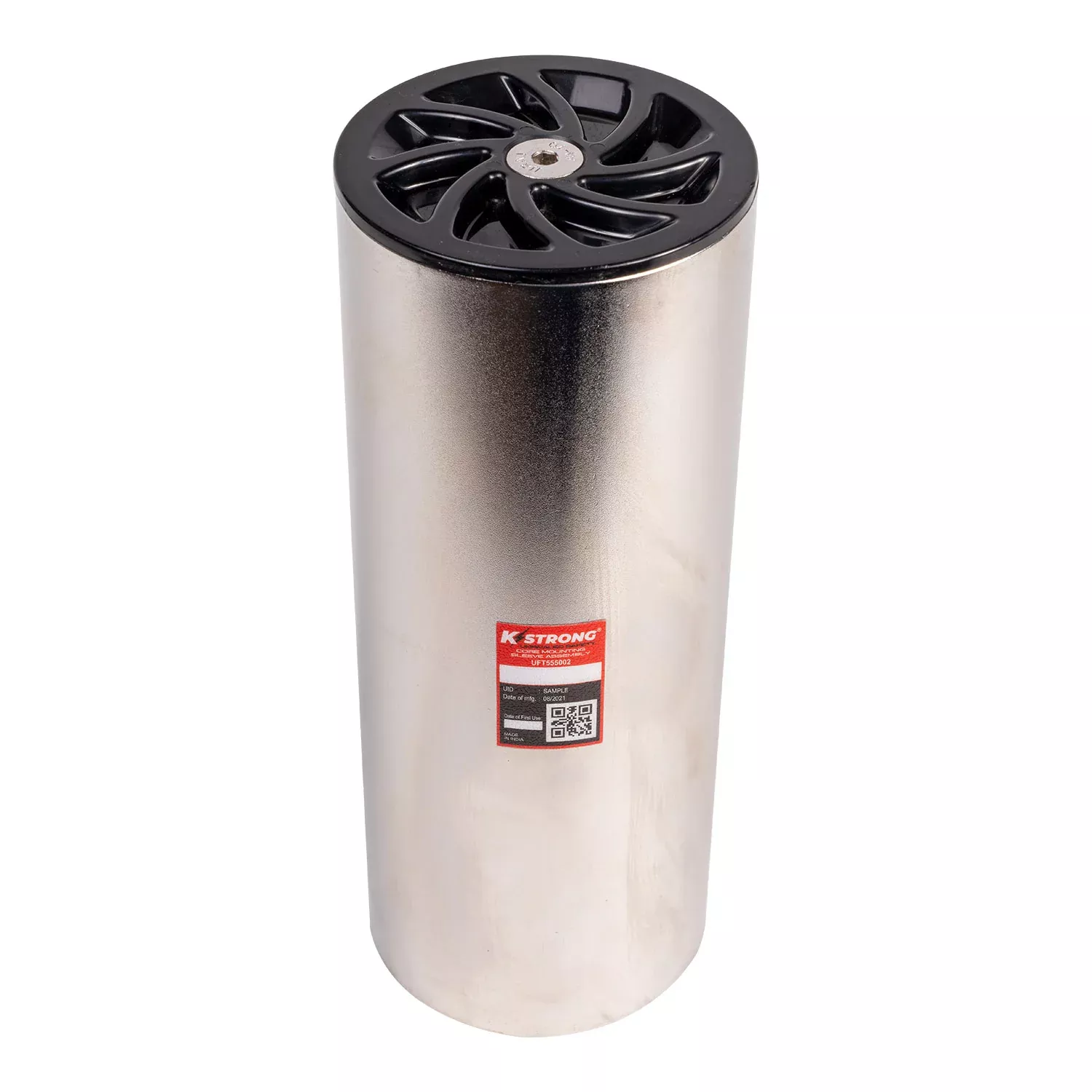

The KStrong® Megadavit™ Concrete Embed Column Mast Receiver is a core mounting sleeve made of SS316 stainless steel, designed to permanently mount a davit column on a concrete base.
Features & Benefits
- Core mounting sleeve can be permanently flushed in concrete during casting or by drilling at a later stage.
- Used to mount a davit column on a concrete base.
- When not in use, the sleeve can be sealed with a specially designed cap to prevent ingress of water and dust.
Specifications
- Material (Body): Stainless Steel (SS316)
- Material (Cap): Polymer
- Finish: Polished
- Structure Strength: 14kN (min)
- Weight: 4.85 lbs. ± 0.22 lbs. (2200gm ± 10gm)
Downloads
- Techsheet
- Manual
