Description:

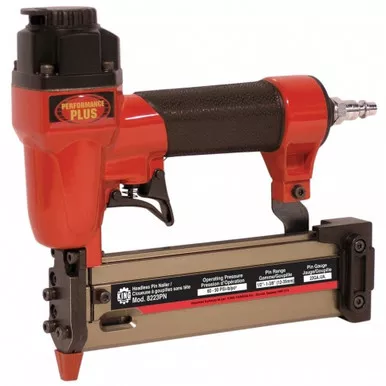

- Powerful pin nailer drives standard 23 Ga. headless pins from 1/2″ to 1-3/8″
- Ideal for detailed woodworking, picture frames, molding and decorative trim
- Pin view finder shows quantity of pins in magazine
- Safety trigger prevents accidental firing
- Adjustable 360° air deflector controls the direction of air exhaust
- 60-90 PSI operating pressure
- Non slip rubber grip
- Onboard storage for hex. key and additional non-marring tip
- Comes with 1/4″ air inlet, 2 removable non-marring tips, oiler, hex. keys and sturdy carrying case
Specifications:
- MODEL: 8223PN
- HEADLESS PIN SIZE: 23 Ga.
- HEADLESS PIN SIZE RANGE: 1/2″ – 1-3/8″ (12 – 35mm)
- MAGAZINE CAPACITY: 120
- OPERATING PRESSURE: 60-90 PSI
- AIR CONSUMPTION (CFM): 3.2 (60-90 PSI)
- HEADLESS PIN DISCHARGE RATE: 180/min @ 90 PSI
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 8-1/2″ x 2″ x 8″ / 2.2 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 9-1/2″ x 3″ x 9″ / 3 lbs
- UPC: 7 72995 00671 7
