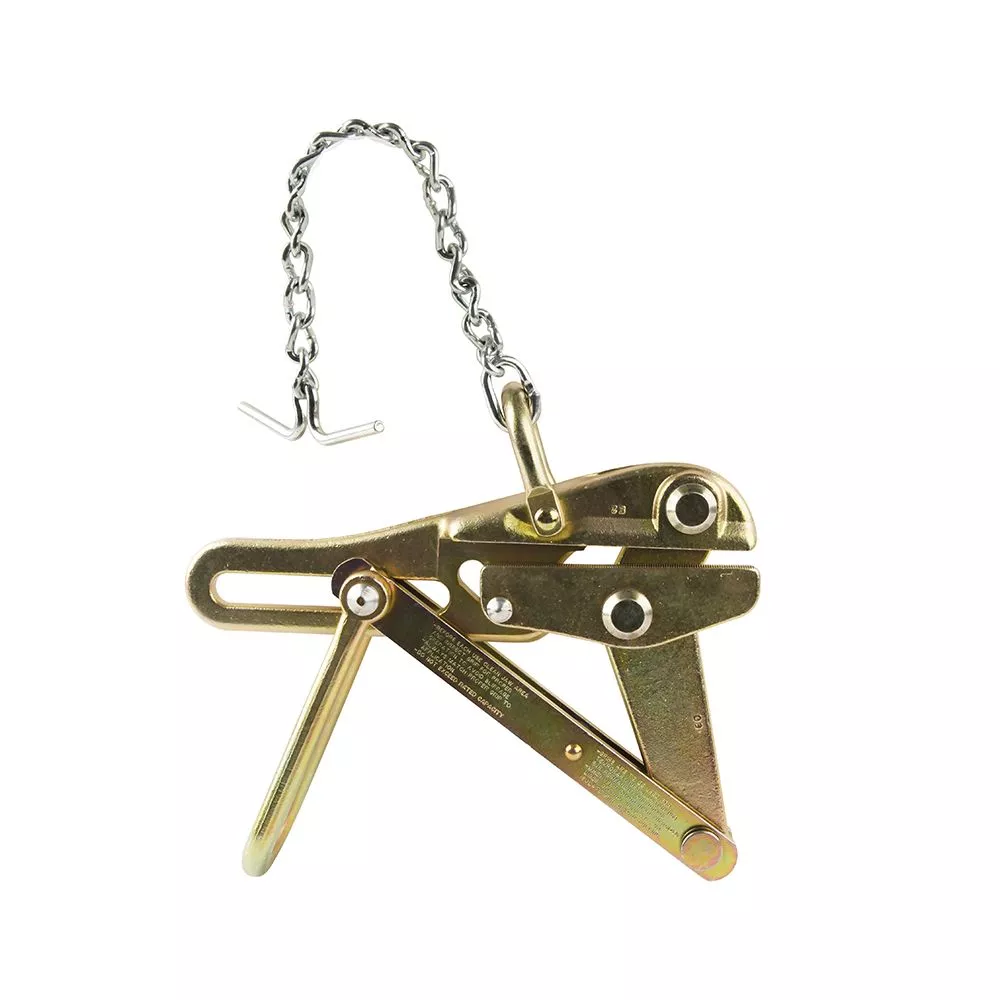

This Chicago Grip is designed specifically to work with coated guy strand and EHS cable. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability. The chain, toggle and shackle keep the grip from falling off the cable. The 5-Inch jaw length increases the surface area contact with the cable minimizing cable damage. The sawtooth jaw profile resists galvanization build-up.
Equipped with chain, toggle and shackle to keep grip from falling off the cable
Designed for cable sizes 0.218 to 0.55-Inch (5.54 to 13.97 mm)
5-Inch (127 mm) jaw length for extra gripping area on stranded cable and spring that closes grip on cable helping to maintain initial position
Specifications
Brand Name
Klein Tools
Sub Brand
Chicago®
Item Name
Grip-Coated Guy Wire with Chain
Type
Chicago Grip
Diameter
0.218 – 0.55 in
Length
13.3 in
Material
Alloy Steel
Load Capacity
8000 lb
Includes
Spring, Locking Handle, Toggle Chain
Application
For Wire Pulling and Aircraft, EHS, Messenger, Guy Strand
UPC
092644470707
