Product Description

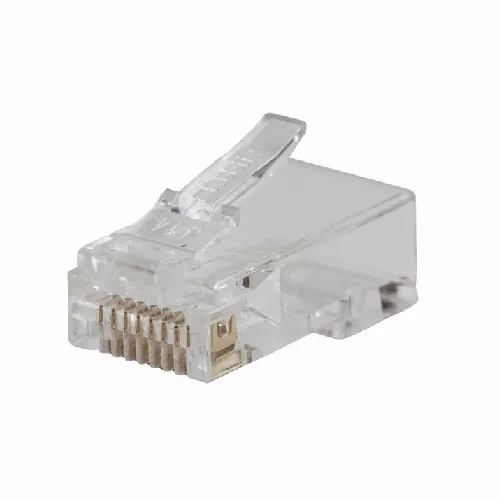

KLEIN VDV826-702 Pass-Thru™ Modular Data Plug, RJ45- CAT5E, 50-Pack092644690822KLEIN VDV826-702 Pass-Thru™ Modular Data Plug, RJ45- CAT5E, 50-Pack092644690822P/N VDV826-702 Pass-Thru™ Modular Data PlugRJ45- CAT5E50-PackUPC092644690822Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applicationsCAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations50 µ-inch minimum gold plating on all contact surfacesCategory 5e performance per EIA/TIA B.2., RoHS compliantFor use with Klein Tools Pass-Thru™ Modular Crimper VDV226-11050-Pack8 position, 8 contact Pass Through style data plug for solid or stranded cableMax diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)SpecificationsType:ModularApplication:Voice and DataSpecial Features:Pass-Thru TechnologyOverall Length:0.875” (2.2 cm)Overall Height:0.453” (1.2 cm)Overall Width:0.094” (0.2 cm)Material:PVC Plastic; Gold Plated ContactsConnector Type:RJ45 Cable Type:CAT5ePosition & Contacts:8P 8CConnector Color:ClearSolid Conductor Wire:YesStranded Conductor Wire:YesPackage Quantity:50Weight:4.8 oz (136 g)UPC:092644690822
