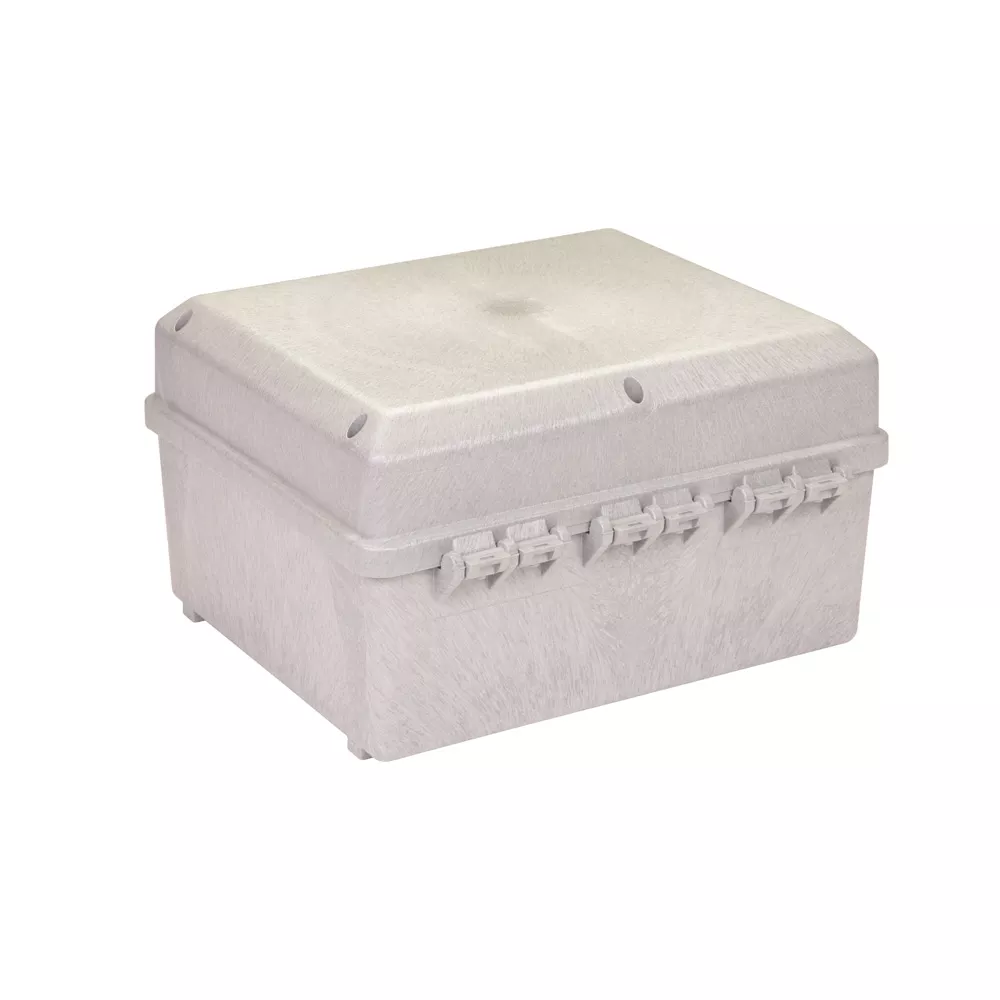

The Raychem EMK-XJB junction box is for particular use in industrial and commercial snow melting applications. It is a large, UL Listed weatherproof enclosure suitable for terminating both ends of an ElectroMelt heating cable circuit. This junction box is large enough for 2 circuits of Raychem ElectroMelt heat trace cables. The enclosure is made of molded structural foam and provides high impact strength, excellent chemical resistance, high dielectric strength, and excellent weathering capabilities.FEATURES:•NEMA ratings: Types 1, 3, 3S, 3X, 3SX, 4, 4X, 12, 13 as indicated•Temperature range is -40°F to 185°F (-40°C to 85°C)•Inside dimensions:12″ x 10″ x 6-7/8″ (30.5 cm x 25.4 cm x 17.5 cm)•Inside volume:825 cubic inches (13528 cm3)•Outside dimensions:15-1/2″ x 11-3/4″ x 7-5/8″ (39.4 cm x 29.85 cm x 19.37 cm)
Specifications
| Brand Name | Raychem | Item Name | Junction Box |
| Type | Large | Length | 12 in (Inside), 15-1/2 in (Outside) |
| Width | 10 in (Inside), 11-3/4 in (Outside) | Depth | 6-7/8 in (Inside), 7-5/8 in (Outside) |
| Cubic Capacity | 825 in³ | Material | Molded Structural Foam |
| NEMA Rating | NEMA 1, 3, 3S, 3X, 3SX, 4, 4X, 12, 13 | Temperature Rating | -40 to 185 °F |
| Standards | UL 508 Listed | Application | For Terminating Both Ends of an ElectroMelt Heating Cable Circuit |
| UPC | 715629007100 |
