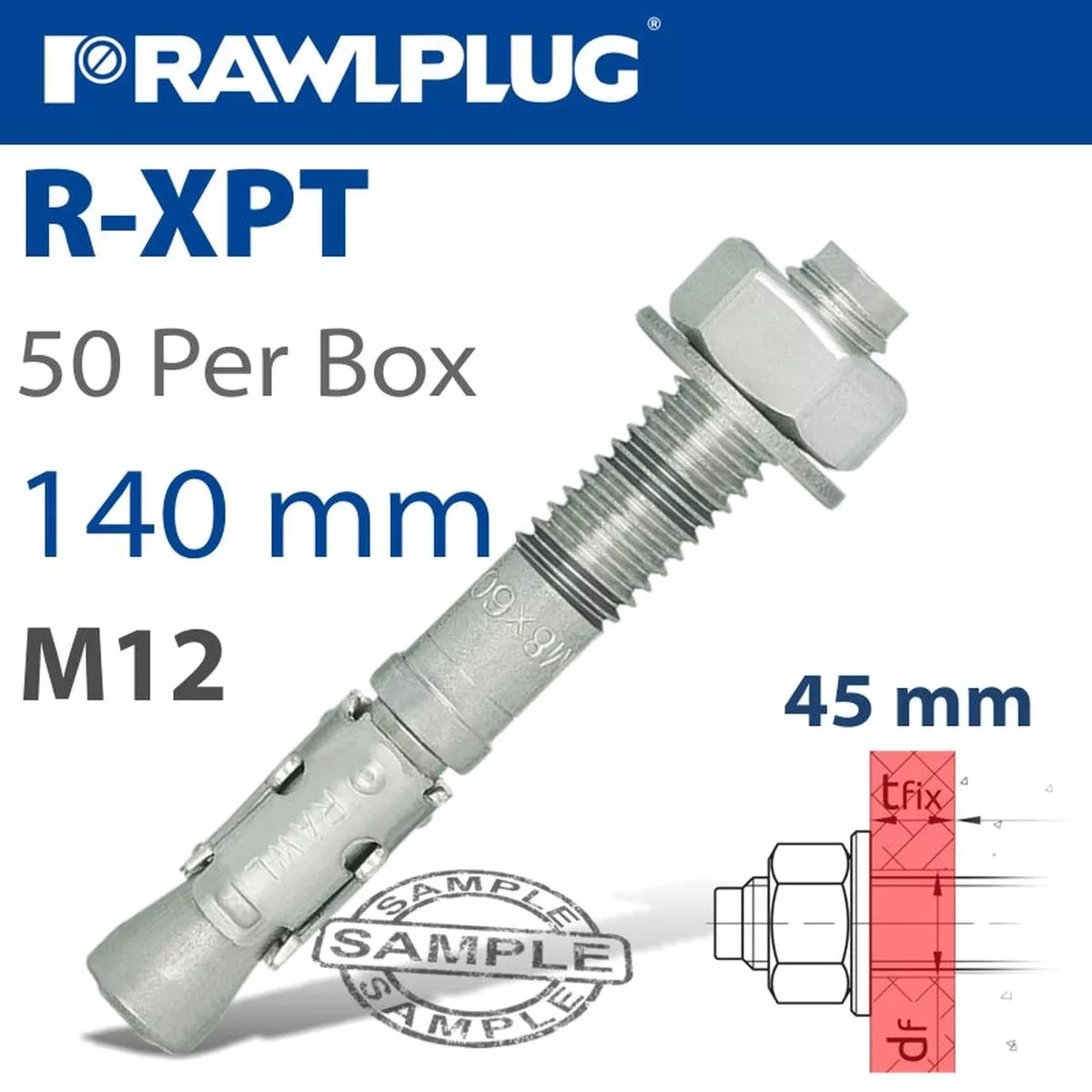

R-XPT Zinc Plated Throughbolt
Holds materials up to 45 mm thick
R-XPT Throughbolt for non-cracked concrete, Zinc Plated
Cat No: R-XPT-12140/45
Size: M12 x 140 mm anchor
Qty: 50 | Box
Throughbolt anchors designed for use in non-cracked concrete. 5.8 Steel Class, Zinc plated
Features and benefits
- High performance in non-cracked concrete confirmed by ETA Option 7
- High quality with cost effectiveness
- Suitable for reduced embedment to avoid contact with reinforcement
- Embedment depth markings help to ensure precise installation of the anchor
- Design allows drilling and installing directly through the fixture and helps to reduce installation effort
- Head marking helps to determine anchor length and setting depth after installation
- Optimized expander design with six grip features allows for a high load-bearing capacity
- Cold formed body ensures consistent dimensional accuracy
Base material
- Non-cracked concrete C20/25-C50/60
- Concrete
- Unreinforced concrete
- Also suitable for natural stone
Applications
- Barriers
- Structural steel
- Cladding restraint
- Curtain wall
- Balustrading
- Handrails
- Racking
- Bollards
| Description | Spec |
| Cat No: | R-XPT-12140/45 |
| Anchor Diameter | 12 mm |
| Anchor Length | 145 mm |
| Thread Protruding | 65 mm |
| Thread Size | M12 |
| Wrench Size | 19 mm |
| Fixture Max Thickness | 45 mm |
| Hole Diameter | 13 mm |
| Quantity per box | 50 |
| Barcode | 5906675249667 |
