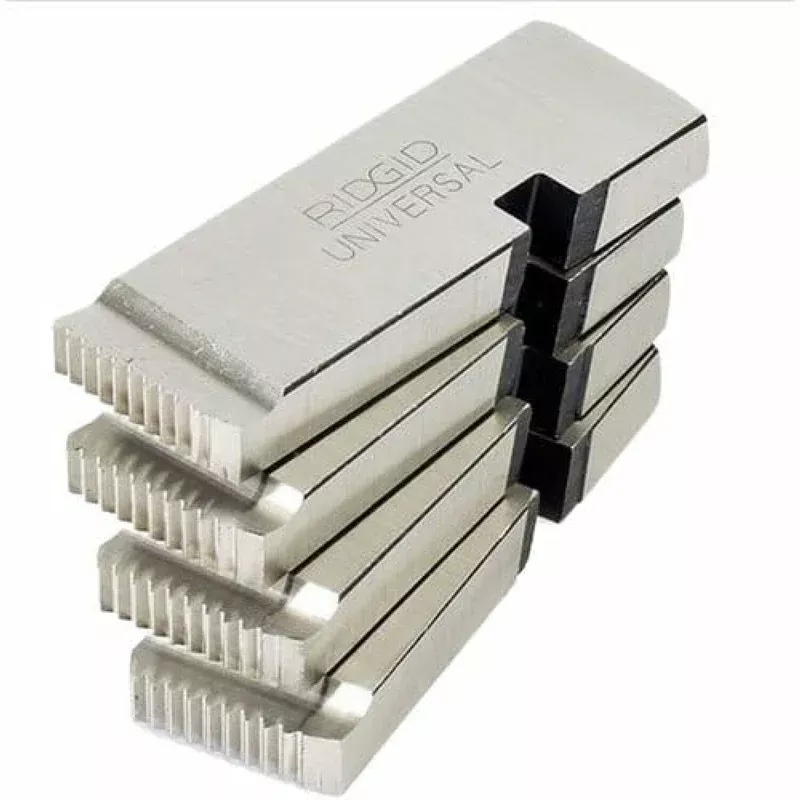

Ridgid 66880 Pipe Die 1/2-14 to 3/4-14 BSPT Thread Right Hand Thread

General Information Brand Ridgid Country of Origin United States UPC 095691668806 California Residents Proposition 65 Warning Part Number 66880 Product Type Die Physical Characteristics Weight 0.29 kg 0.65 lb Material Alloy Steel Details Features BSPTRight Hand ThreadWith 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machineNotches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctlyUsed in 514 (LH), 515 (RH), 555 (RH), and 1/2 to 3/4 Dual Die Heads1/2 – 3/4 inch nominal pipe Size14 Threads per inchThreading size, thread length, and microfine adjustment of thread diameter can all be adjusted easilyDies can be changed without removing the die head from the machineDies are crafted from tool steelMarked for easy identification of the type of pipe and the sizes they are designed to cut for easy identificationTwo-step blade provides a stable bite allowing you to remove any external coating and cut the pipe at the same time
