Ridgid

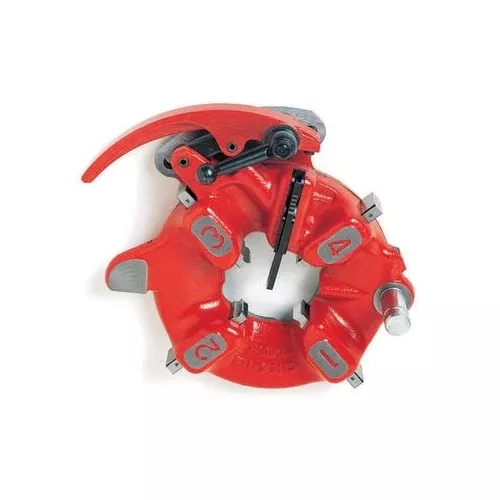

815A 1/8 – 2″ NPT Die Head
1215; 1233; 535; 535A; 1822 Machines and 300; 300 Compact and 300-A w/carriage
FEATURES:
- Self-Opening
- Thread Direction: RH
SPECIFICATIONS:
| Dies Used | Univ |
|---|---|
| Pipe Capacity | 1/8-2 |
| Bolt Capacity | 1/4-2 |
| Weight | 13 lbs |
Notes:
- British Die Heads use British Dies only
- 531 and 532 Die Heads replace 500B Die Head
- No. 811A Die Head replaces No. 811 and No. 841 Die Heads
- No. 815A Die Head replaces No. 815 and No. 845 Die Heads
- No. 500A Die Head replaces No. 500 Mono Die Heads.
- No. 555 Die Head replaces No. 515
- Individual Machine Die Heads do not include Dies
“
