Safety Speed Manufacturing SR5U Panel Saw and 3HP Router Combo

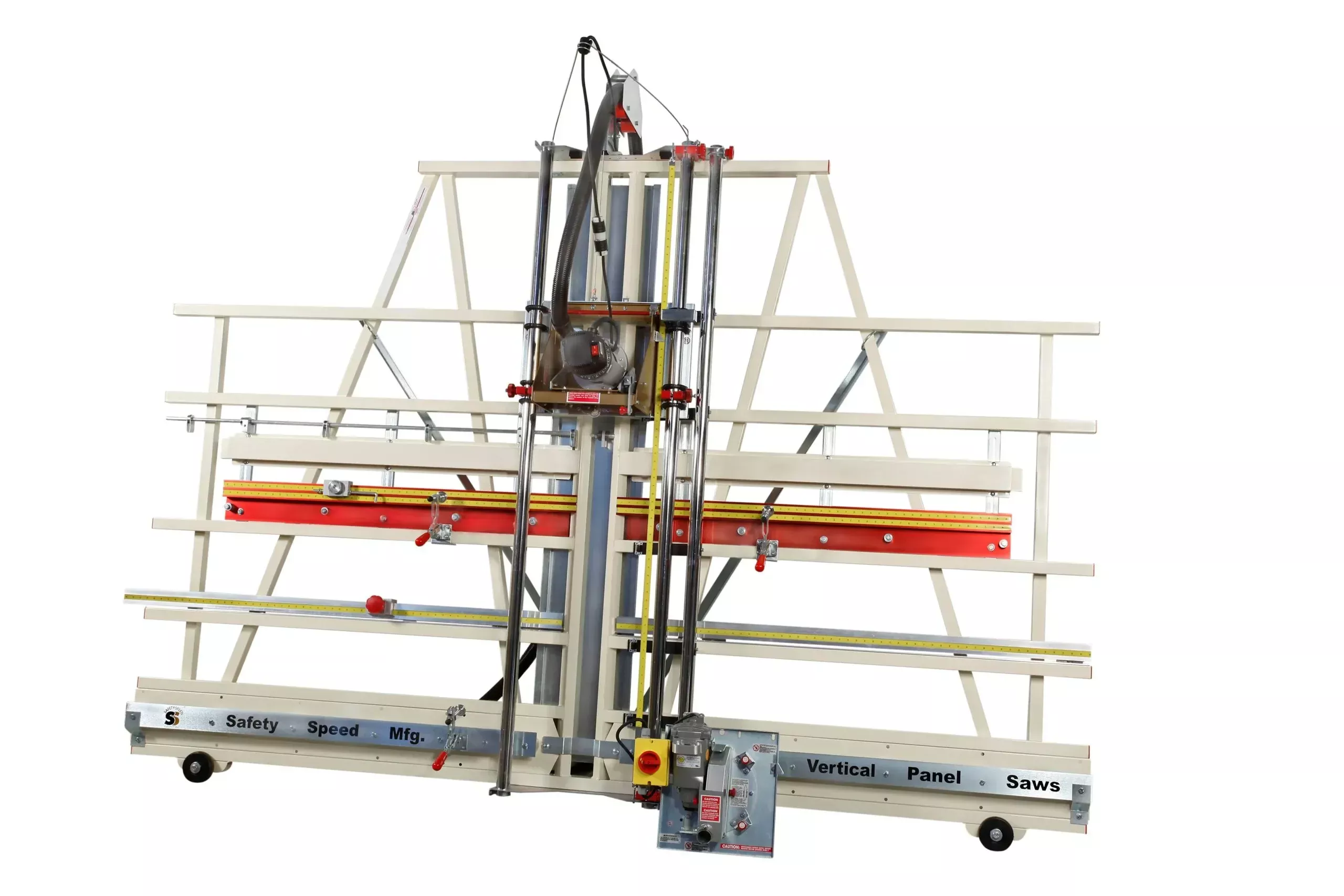

A big brother to the SR5, the SR5U is equipped with a heavier duty worm drive motor, a 3 Hp router motor andaluminum material rollers. Photos are shown with a stand, and wheels which are optional accessories.
This machine is perfect for cabinet shops, composite panel fabrication and other applications where both panelsizing and panel routing are required functions. Ask about our V-grooving package.
Features:
- 3 Hp, worm driven saw motor.
- 3 Hp, heavy-duty router motor.
- 10 ft. welded steel frame.
- Chrome-plated 1-3/4″ guide tubes.
- 8 Nylatron roller bearing system.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard 4 material clamps.
- Integrated dust collection bonnets.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- Adjustable floating router head.
- MID-WAY FENCE™ flip stop.
- 2 blind dado stops.
- Extended warranty.
- TUV certified to UL/CSA standards.
Specifications:
- Weight — 589 lbs
- Dimensions — 124 x 17 x 92in
- Maximum cutting height — 62″/1575mm
- Max. Rip Cut — Unlimited
- Max. Cut Thickness — 1 3/4″/45mm
- Cut Accuracy, Straight and Square — 1/64″/.4mm
- Saw Blade Diameter — 8″/210mm
- Frame Length — 120″/3050mm
- Router Bit Collet — 1/4″ or 1/2″ collet router bits.
- Router Motor — 15 amp, 3HP
- Saw Motor — Worm Drive, 13 amp, 3HP
- Country of Origin — USA
