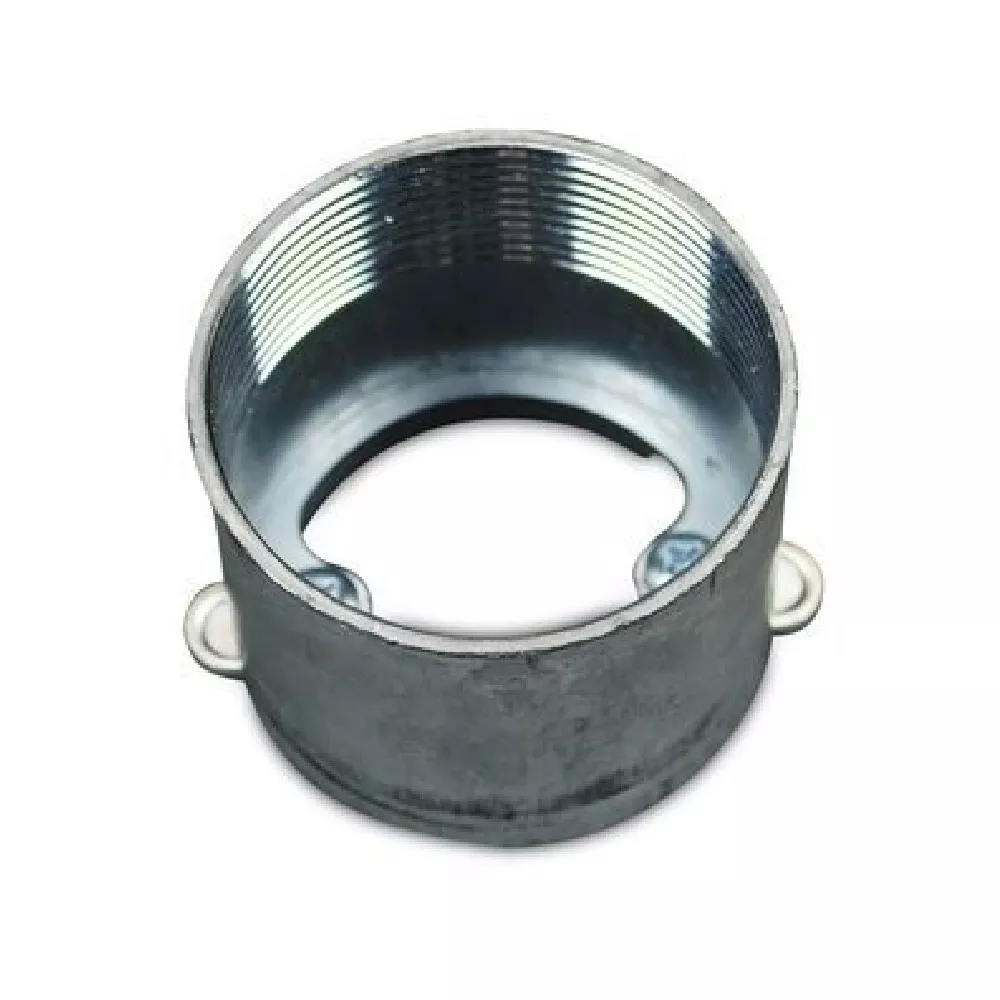

Round Afterset Installed Either Before Or After Concrete Pour To Create Activation From Duct. Requires 2 1/2″ Core Drilled Hole In Concrete And 2 1/4″ Diameter Hole In Duct. Attaches To Duct With Locking Tabs. Extensions Can Be Attached To Increase Height. 1 1/2″ High
This product meets the material restrictions of RoHS
Specifications
Brand Name
Legrand
Sub Brand
Wiremold
Item Name
Afterset Insert
Color
Silver
Type
Round
Series/Model
Walkerduct Pro Series
Material
Aluminum
Dimensions
1-1/2 in
Mounting
Screw On
Standards
cULus Listed Underfloor Raceway: File E7020 Guide RKCZ cULus Listed Underfloor Raceway Fittings: File E11912 Guide RKQX, Meets Article 390 of NEC, Buy American Act Compliant
Application
Casino and Heavy-Duty Junction Box Applications
UPC
786564217718
Packages
