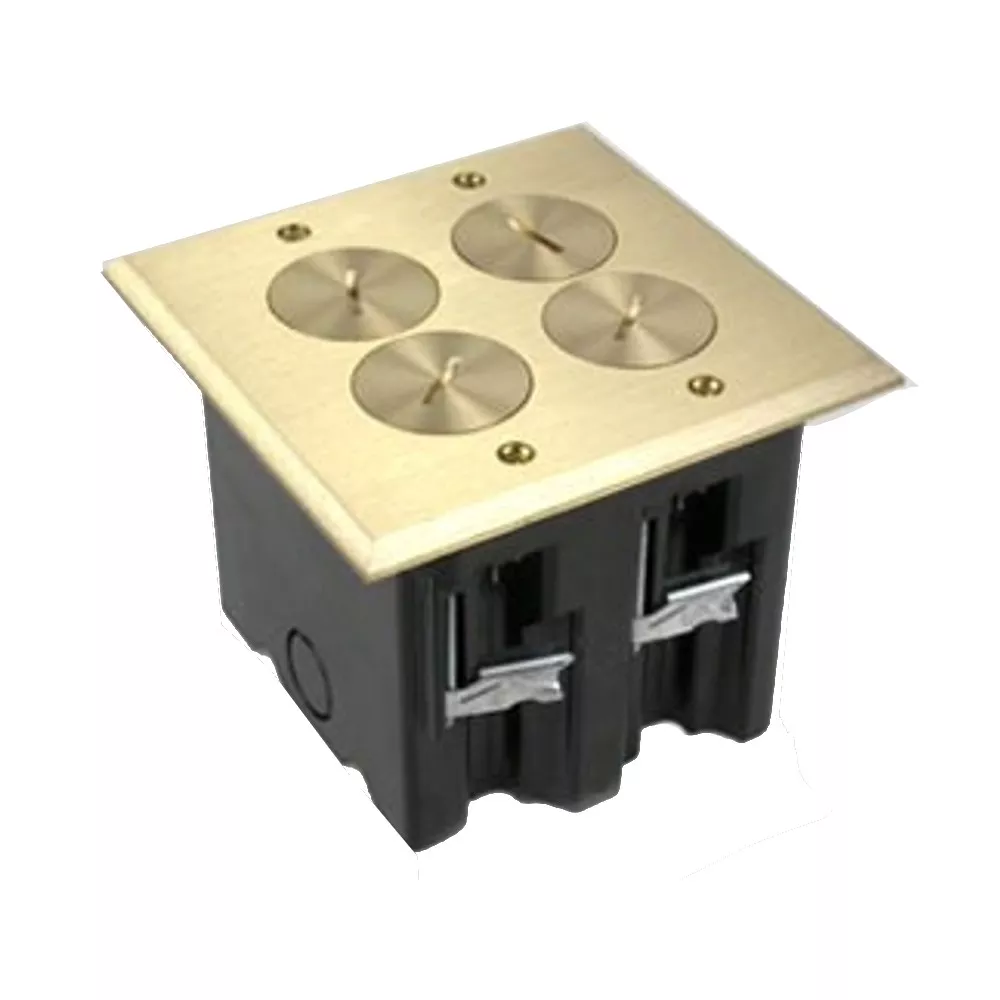

Dual gang floor box assembly. Includes dual gang box, one 15 A tamper resistant duplex receptacle, 106 adapter with four openings for communication devices and nickel cover with four screw plugs. Device Plate: 4 7/8 inch (W) x 5 1/16 inch (L).
Includes dual-gang box, one 15A tamper-resistant duplex receptacle, 106 adapter with four openings for communication devices, and nickel cover with four screw plugs.
Box Dimensions: 3 1/4” W x 3 3/4” L x 3 7/8” D (83mm W x 95mm L x 98mm D) Device Plate: 4 7/8” W x 5 1/16” L (124mm W x 129mm L).
For hole cut dimensions, see installation instructions sheet.
Specifications
Brand Name
Wiremold
Sub Brand
Wiremold
Item Name
Floor Box Assembly
Type
2-Outlet, 4 Keystone Port, 15 A Duplex
Length
3-3/4 in
Width
2-1/8 in
Depth
3-7/8 in
Number of Gangs
2
Material
Brass Cover
Finish
Brushed Nickel
Color
Brass
Mounting Type
Screw-On
Series/Model
WMFB
Cable Entry
Through Floor
Standards
cULus Listed, UL File Number E143222, Meets Article 314.27(C) of NEC
Application
Commercial, Office, Residential
UPC
786564054030
